For premium wine cabinets, the glass door does far more than showcase the collection. It is a critical component that influences temperature stability, energy consumption, condensation resistance, and the overall user experience.
Long-term wine storage requires a stable temperature environment, reliable UV protection, low operating noise, and effective resistance to condensation. Traditional insulated glass doors may experience condensation on the glass surface, increased heat transfer, and higher refrigeration loads when operating in high-humidity environments or under continuous cooling conditions.

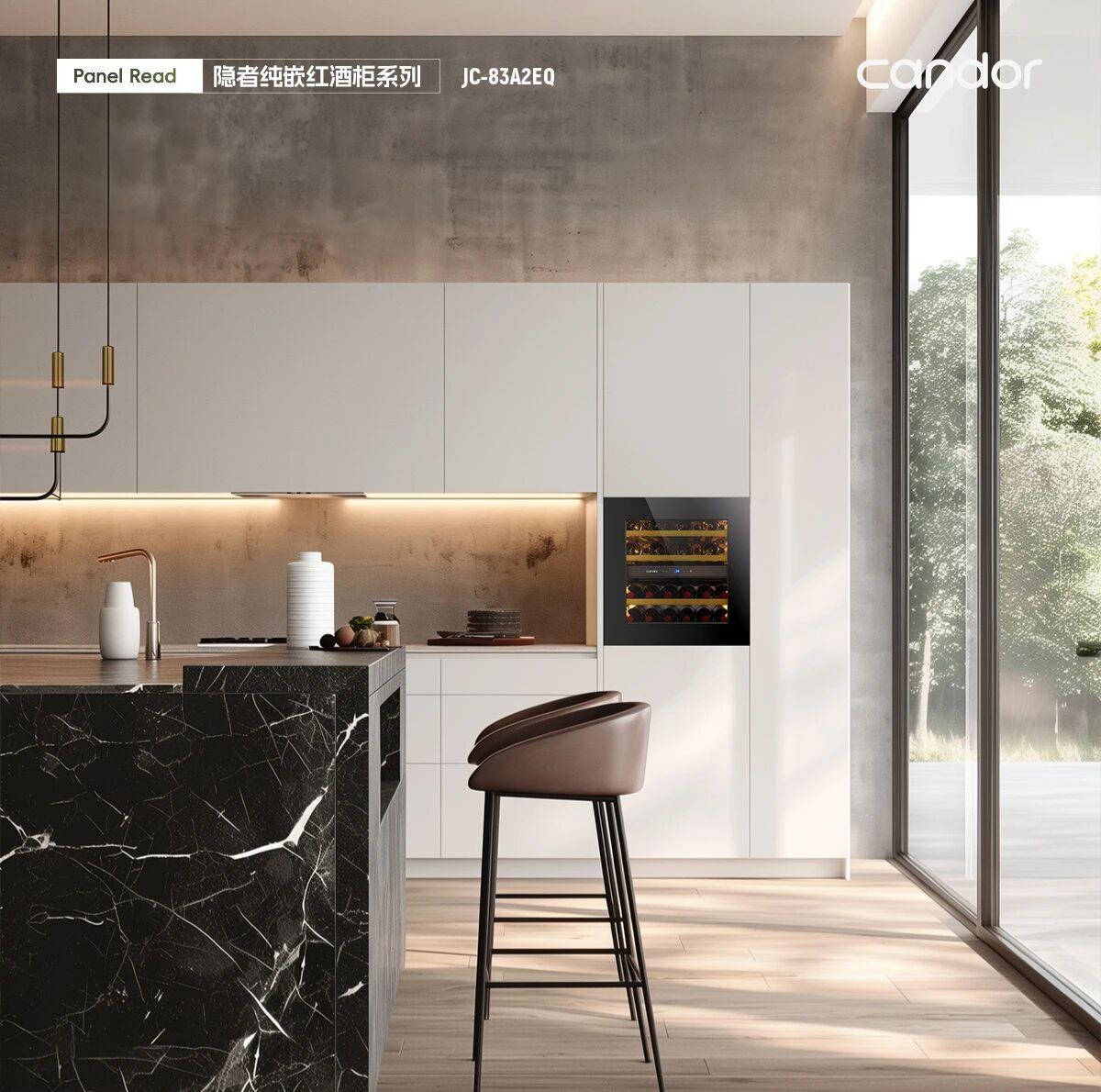

To address the demanding requirements of premium wine storage, the candor “Yinzhe Pure Built-in” Series Wine Cabinet uses LandVac Titanium Vacuum Glass (Vacuum Insulating Glass, VIG) as its core door glazing solution.
With ultra-low heat transfer, excellent acoustic insulation, an ultra-thin profile, and enhanced safety, LandVac Titanium Vacuum Glass provides premium built-in wine cabinets with a glass door solution that combines energy efficiency, aesthetics, and reliable performance.
The glass door of a wine cabinet sits between a low-temperature storage environment and the surrounding indoor environment, making it one of the primary areas of heat exchange.
Compared with conventional glass and traditional insulated glass, vacuum glass uses a vacuum insulation structure to significantly reduce heat transfer through gas conduction and convection, delivering superior thermal insulation performance.
For premium wine cabinet applications, LandVac Titanium Vacuum Glass can provide:
More stable wine storage temperatures
Lower refrigeration system load
Enhanced condensation resistance
A quieter operating environment
Greater flexibility for built-in cabinet design
Condensation on a wine cabinet door not only affects visual presentation but may also create challenges for wine label preservation and long-term equipment operation.
With a U-value as low as 0.4 W/(m²·K), LandVac Titanium Vacuum Glass effectively reduces heat exchange between the interior and exterior sides of the glazing. This helps maintain a higher surface temperature on the exterior-facing glass, reducing the likelihood of the surface reaching dew-point conditions.
By minimising heat transfer, the vacuum glazing significantly reduces the risk of condensation, helping maintain a clear, transparent appearance while contributing to a more stable wine storage environment.
For wine cabinets designed for continuous operation, the thermal performance of the door glazing has a direct impact on energy consumption.
In wine cabinet applications, LandVac Titanium Vacuum Glass can deliver approximately 34% energy savings compared with conventional insulated glass solutions.
Reduced cooling losses can deliver three key benefits:
Lower compressor cycling frequency, helping minimise temperature fluctuations and making it easier to maintain temperature control within ±1°C
Lower overall electricity consumption
Reduced compressor operating load, supporting improved long-term reliability and service life
By reducing heat exchange between the cabinet interior and the surrounding environment, LandVac Titanium Vacuum Glass helps premium wine cabinets operate more efficiently and consistently.
Light exposure, particularly ultraviolet (UV) radiation, is an important consideration for long-term wine storage.
The outer lite of LandVac Titanium Vacuum Glass features a tempered Low-E glass structure, which helps reduce UV transmission into the cabinet. This can help minimise the potential impact of light exposure on compounds associated with wine quality and long-term ageing.
For collectable wines and long-term ageing applications, this glazing configuration provides an additional layer of protection for the storage environment.
Modern premium kitchens and residential interiors increasingly emphasise seamless integration, visual simplicity, and space-efficient design.
Traditional insulating glass units often require greater structural depth. With a total thickness of only 8.3 mm, LandVac Titanium Vacuum Glass combines high thermal insulation performance with a slim profile, providing greater flexibility for built-in wine cabinet designs.
This allows the wine cabinet to become an integrated part of the interior design rather than simply a functional appliance.
39 dB Acoustic Insulation for a Quieter Wine Storage Experience
Premium residential environments demand not only visual refinement but also acoustic comfort.
LandVac Titanium Vacuum Glass achieves an acoustic insulation performance of up to 39 dB, helping reduce the transmission of external noise through the glass door.
Whether installed in an open-plan kitchen or an integrated living space, the glazing contributes to a quieter operating environment and a more refined premium-home experience.
Built-in home appliances require reliable safety performance, particularly in residential environments.
LandVac Titanium Vacuum Glass uses fully tempered glass substrates. In the event of extreme impact or breakage, tempered glass fractures into relatively small granular pieces rather than large sharp shards, helping reduce the risk associated with broken glass.
This provides an additional level of safety for premium wine cabinets in residential applications.
| Performance | Conventional Insulated Glass | LandVac Titanium Vacuum Glass |
|---|---|---|
| Thermal Insulation | U-value: 1.0-2.0 W/(m2/K) | U-value as low as 0.4 W/(m2/K) |
| Condensation Resistance | May require heating | Enhanced condensation resistance |
| Thickness | 16-24 mm | 8.3 mm ultra-thin profile |
| Acoustic Insulation | 31-32 dB | Up to 39 dB |
| Built-in Design | More structural limitations | Greater flexibility for minimalist designs |
Q1: Why do wine cabinet glass doors need vacuum glass?
Wine cabinets need to maintain a stable low-temperature environment over long periods, and the glass door is an important area of heat exchange. Vacuum glass reduces heat transfer and improves thermal insulation, helping lower energy consumption and maintain more stable storage temperatures.
Q2: Can vacuum glass prevent condensation on wine cabinet doors?
LandVac Titanium Vacuum Glass provides excellent thermal insulation performance, helping maintain a higher exterior glass surface temperature and reducing the likelihood of reaching dew-point conditions. This can significantly reduce the risk of condensation under suitable operating conditions.
Q3: What premium appliances can LandVac Titanium Vacuum Glass be used for?
In addition to wine cabinets, LandVac Titanium Vacuum Glass can be used in premium appliances and other applications requiring high thermal insulation, low noise, and slim glazing structures, including energy-efficient building retrofits and specialised glazing applications.
Q4: Why is an 8.3 mm thickness important for built-in wine cabinets?
A thinner glazing structure helps reduce limitations on door and cabinet dimensions, giving designers greater flexibility to achieve seamless, integrated designs while maintaining excellent thermal insulation performance.
From condensation resistance and energy efficiency to UV protection, ultra-thin design, and acoustic comfort, LandVac Titanium Vacuum Glass is redefining the glass door solution for premium wine cabinets.
Integrated with the candor “Yinzhe Pure Built-in” Series Wine Cabinet, LandVac Titanium Vacuum Glass not only enhances the functional performance of the appliance but also contributes to a more stable, quiet, safe, and visually refined premium wine storage experience.
